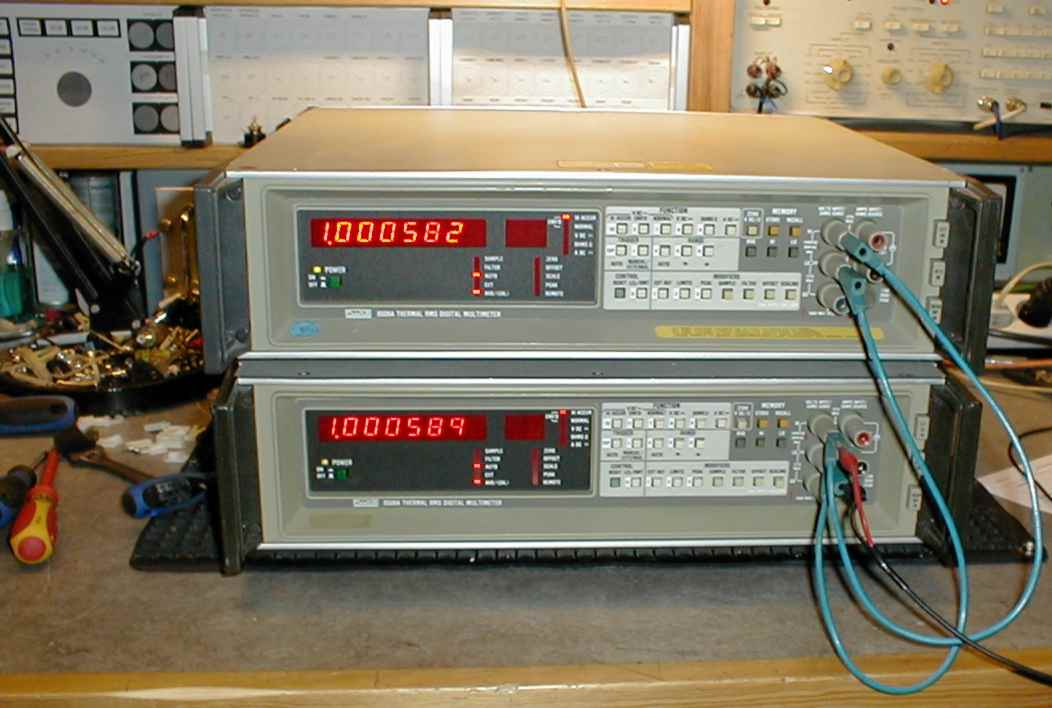

Fluke 8506A Features : The 8506A Thermal True RMS Multimeter features 6 ½ digit resolution, full annunciation and simplicity of operation.
Modular construction, microprocessor control, and a bus structure provide excellent flexibility.
Memory programming from the front panel (or through a remote interface) controls all measurement parameters, mathematical operations and special operations.
The standard hardware configuration allows for measurement of thermal true-rms volts on eight ranges and dc volts in five ranges.
An averaging mode is available to automatically optimize display resolution and stability for each range in dc volts, resistance, and dc current functions.
Extended resolution is also available in the ac volts function.
Optional modules are available for dc current (five ranges) and resistance (eight ranges) in two-wire or four-wire arrangements.
DCV measurement ranges: 100 mV to 1000 V
ACV measurement ranges: 100 mV to 500 V
5 ppm dc accuracy, 100 nV sensitivity
120 ppm 24 hour ac accuracy, 40 Hz to 20 kHz
Full accuracy for crest factors as high as 8:1
25 ppm short term ac stability
Frequency response specified to 1 MHz
AC-DC transfer accuracies with DMM speed and convenience
500 readings per second with 6.5 digit resolution
GPIB/IEEE-488, RS-232C, parallel interface options
Front-rear switchable input standard in basic mainframe
Built in math power to add, subtract, multiply, and divide as well as store and compare numerical information
Ratio (external DC reference) for voltage, resistance, or current (depending on installed options)
Software calibration from front panel or remote interface
Modular construction for application flexibility Options: Resistance, DC current (cannot both be installed
